hp ThinClient t5720が届いた。

hardware pc

Windows XP Embedded搭載のシンクライアント hp t5720が届いた。
定価60900円のところ 9割引きで 6090円とお買い得。


というスペック。VGAはメインメモリから 16MBを UMAとして使う。

結構厳しく制限された Windows XPなので、USBデバイスは見えないし、エクスプローラもコマンドプロンプトも無いので色々困る。

ここにアップデートなどがあるので、OSが壊れたりした時はこれを使う。

日本語のドキュメント類があるので、適当に見る。
メモリとフラッシュが交換可能と書いてあるのでビビる。

ここにアクセサリ一覧がある。
どうも英語版のドキュメントを見ると、メモリは SO-DIMMで 1GBまで可能、フラッシュも 1GBまで交換可能に見えるし、
純正アクセサリとして売られている価格もそれなりにリーズナブル。


ここに交換用フラッシュの写真があるが、どーも IDEコネクタに見えるな。

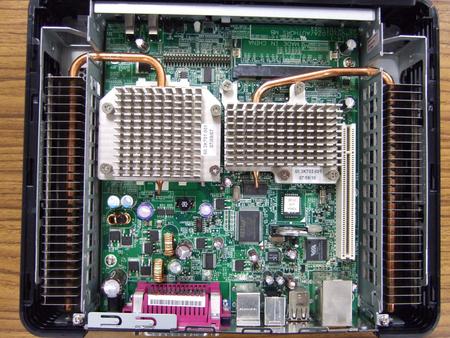

ということで分解してみた。

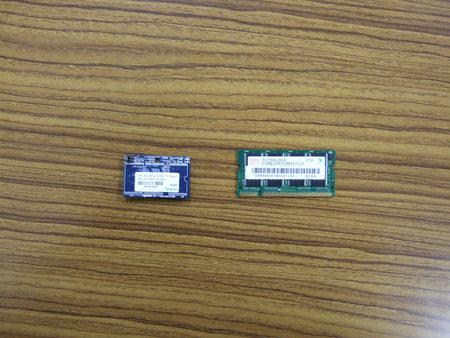

メモリは hynix PC2700S-25330 512MB DDR 333MHz CL2.5、
フラッシュは Apacer RoHS対応 AP-FM0512A10C5Gだった。

フラッシュはこれだな。純正では 1GBまでラインナップがある。
http://www.e-itx.com/apacer-adm-ii-512mb-fm0512a10c5g.html

単なる IDEだとするならば8GBでもイケそうな気がするけれども、8GBで 319USDか
http://www.e-itx.com/apacer-adm-ii-44-pin-dom-90d.html



BIOSのデフォルトで 1st boot deviceが USBになっているので、USBフラッシュあるいは USB CD-ROMドライブを繋げると簡単にブートできる。
フラッシュメモリは特に細工されていないので、好きな OSを書き込める。

Distribution: Etch (Debian GNU/Linux 4.0)　i386　etch-custom-1013.iso - kernel version 2.6.23 + experimental e1000e driver

というのを入れてみた。

Linux version 2.6.23-1-486 (Debian 2.6.23-1~mtu1) (kmuto@debian.org) (gcc version 4.1.2 20061115 (prerelease) (Debian 4.1.1-21)) #1 Fri Oct 12 14:01:24 UTC 2007
BIOS-provided physical RAM map:
BIOS-e820: 0000000000000000 - 000000000009fc00 (usable)
BIOS-e820: 000000000009fc00 - 00000000000a0000 (reserved)
BIOS-e820: 00000000000f0000 - 0000000000100000 (reserved)
BIOS-e820: 0000000000100000 - 000000001eff0000 (usable)
BIOS-e820: 000000001eff0000 - 000000001eff3000 (ACPI NVS)
BIOS-e820: 000000001eff3000 - 000000001f000000 (ACPI data)
BIOS-e820: 00000000fec00000 - 00000000fec01000 (reserved)
BIOS-e820: 00000000fee00000 - 00000000fee01000 (reserved)
BIOS-e820: 00000000ffff0000 - 0000000100000000 (reserved)
495MB LOWMEM available.
found SMP MP-table at 000f5200
Entering add_active_range(0, 0, 126960) 0 entries of 256 used
Zone PFN ranges:
DMA 0 -> 4096
Normal 4096 -> 126960
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
0: 0 -> 126960
On node 0 totalpages: 126960
DMA zone: 32 pages used for memmap
DMA zone: 0 pages reserved
DMA zone: 4064 pages, LIFO batch:0
Normal zone: 959 pages used for memmap
Normal zone: 121905 pages, LIFO batch:31
Movable zone: 0 pages used for memmap
DMI 2.3 present.
ACPI: RSDP 000F74F0, 0014 (r0 AWARD )
ACPI: RSDT 1EFF3040, 0030 (r1 AWARD AWRDACPI 42302E31 AWRD 0)
ACPI: FACP 1EFF30C0, 0074 (r1 AWARD AWRDACPI 42302E31 AWRD 0)
ACPI: DSDT 1EFF3180, 3460 (r1 AWARD AWRDACPI 1000 MSFT 100000E)
ACPI: FACS 1EFF0000, 0040
ACPI: SSDT 1EFF66C0, 00D6 (r1 AWARD AWRDACPI 42302E31 AWRD 0)
ACPI: APIC 1EFF6640, 005A (r1 AWARD AWRDACPI 42302E31 AWRD 0)
ACPI: PM-Timer IO Port: 0x1008
ACPI: Local APIC address 0xfee00000
ACPI: LAPIC (acpi_id[0x00] lapic_id[0x00] enabled)
Processor #0 6:8 APIC version 16
ACPI: LAPIC_NMI (acpi_id[0x00] high edge lint[0x1])
ACPI: IOAPIC (id[0x02] address[0xfec00000] gsi_base[0])
IOAPIC[0]: apic_id 2, version 20, address 0xfec00000, GSI 0-23
ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl)
ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 dfl dfl)
ACPI: IRQ0 used by override.
ACPI: IRQ2 used by override.
ACPI: IRQ9 used by override.
Enabling APIC mode: Flat. Using 1 I/O APICs
Using ACPI (MADT) for SMP configuration information
Allocating PCI resources starting at 20000000 (gap: 1f000000:dfc00000)
swsusp: Registered nosave memory region: 000000000009f000 - 00000000000a0000
swsusp: Registered nosave memory region: 00000000000a0000 - 00000000000f0000
swsusp: Registered nosave memory region: 00000000000f0000 - 0000000000100000
Built 1 zonelists in Zone order. Total pages: 125969
Kernel command line: root=/dev/hda2 ro
mapped APIC to ffffb000 (fee00000)
mapped IOAPIC to ffffa000 (fec00000)
Enabling fast FPU save and restore... done.
Enabling unmasked SIMD FPU exception support... done.
Initializing CPU#0
PID hash table entries: 2048 (order: 11, 8192 bytes)
Detected 1000.049 MHz processor.
Console: colour VGA+ 80x25
console [tty0] enabled
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
Memory: 494572k/507840k available (1694k kernel code, 12688k reserved, 672k data, 312k init, 0k highmem)
virtual kernel memory layout:
fixmap : 0xfffb3000 - 0xfffff000 ( 304 kB)
vmalloc : 0xdf800000 - 0xfffb1000 ( 519 MB)
lowmem : 0xc0000000 - 0xdeff0000 ( 495 MB)
.init : 0xc0352000 - 0xc03a0000 ( 312 kB)
.data : 0xc02a7b11 - 0xc034fdc4 ( 672 kB)
.text : 0xc0100000 - 0xc02a7b11 (1694 kB)
Checking if this processor honours the WP bit even in supervisor mode... Ok.
Calibrating delay using timer specific routine.. 2001.52 BogoMIPS (lpj=4003049)
Security Framework v1.0.0 initialized
SELinux: Disabled at boot.
Capability LSM initialized
Mount-cache hash table entries: 512
CPU: After generic identify, caps: 0383fbff c1cbfbff 00000000 00000000 00000000 00000000 00000000 00000000
CPU: L1 I Cache: 64K (64 bytes/line), D cache 64K (64 bytes/line)
CPU: L2 Cache: 256K (64 bytes/line)
CPU: After all inits, caps: 0383fbff c1cbfbff 00000000 00000420 00000000 00000000 00000000 00000000
Compat vDSO mapped to ffffe000.
CPU: AMD Athlon(tm) Processor stepping 01
Checking 'hlt' instruction... OK.
ACPI: Core revision 20070126
ENABLING IO-APIC IRQs
..TIMER: vector=0x31 apic1=0 pin1=2 apic2=-1 pin2=-1
Booting paravirtualized kernel on bare hardware
NET: Registered protocol family 16
EISA bus registered
ACPI: bus type pci registered
PCI: PCI BIOS revision 2.10 entry at 0xfa690, last bus=1
PCI: Using configuration type 1
Setting up standard PCI resources
ACPI: EC: Look up EC in DSDT
ACPI: Interpreter enabled
ACPI: (supports S0 S5)
ACPI: Using IOAPIC for interrupt routing
ACPI: PCI Root Bridge [PCI0] (0000:00)
Enabling SiS 96x SMBus.
ACPI: PCI Interrupt Routing Table [\_SB_.PCI0._PRT]
ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 5 7 9 10 *11 12 14 15)
ACPI: PCI Interrupt Link [LNKB] (IRQs 3 4 5 7 9 10 11 12 14 15) *0, disabled.
ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 5 7 9 *10 11 12 14 15)
ACPI: PCI Interrupt Link [LNKD] (IRQs 3 4 5 7 9 10 11 12 14 *15)
ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 5 7 *9 10 11 12 14 15)
ACPI: PCI Interrupt Link [LNKF] (IRQs *3 4 5 7 9 10 11 12 14 15)
ACPI: PCI Interrupt Link [LNKG] (IRQs 3 4 5 7 9 10 11 12 14 15) *0, disabled.
ACPI: PCI Interrupt Link [LNKH] (IRQs 3 4 *5 7 9 10 11 12 14 15)
Linux Plug and Play Support v0.97 (c) Adam Belay
pnp: PnP ACPI init
ACPI: bus type pnp registered
pnp: PnP ACPI: found 11 devices
ACPI: ACPI bus type pnp unregistered
PnPBIOS: Disabled by ACPI PNP
PCI: Using ACPI for IRQ routing
PCI: If a device doesn't work, try "pci=routeirq". If it helps, post a report
NET: Registered protocol family 8
NET: Registered protocol family 20
ACPI: RTC can wake from S4
Time: tsc clocksource has been installed.
pnp: 00:00: iomem range 0xc8000-0xcbfff has been reserved
pnp: 00:00: iomem range 0xce000-0xcffff has been reserved
pnp: 00:00: iomem range 0xf0000-0xfbfff could not be reserved
pnp: 00:00: iomem range 0xfc000-0xfffff could not be reserved
PCI: Bridge: 0000:00:01.0
IO window: d000-dfff
MEM window: ec000000-ec0fffff
PREFETCH window: e0000000-e7ffffff
NET: Registered protocol family 2
IP route cache hash table entries: 4096 (order: 2, 16384 bytes)
TCP established hash table entries: 16384 (order: 5, 131072 bytes)
TCP bind hash table entries: 16384 (order: 4, 65536 bytes)
TCP: Hash tables configured (established 16384 bind 16384)
TCP reno registered
checking if image is initramfs... it is
Switched to high resolution mode on CPU 0
Freeing initrd memory: 5350k freed
audit: initializing netlink socket (disabled)
audit(1193255640.216:1): initialized
VFS: Disk quotas dquot_6.5.1
Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
io scheduler noop registered
io scheduler anticipatory registered
io scheduler deadline registered
io scheduler cfq registered (default)
Boot video device is 0000:01:00.0
isapnp: Scanning for PnP cards...
isapnp: No Plug & Play device found
Serial: 8250/16550 driver $Revision: 1.90 $ 4 ports, IRQ sharing enabled
serial8250: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
00:07: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
pnp: Device 00:09 activated.
PNP: PS/2 Controller [PNP0303:PS2K,PNP0f13:PS2M] at 0x60,0x64 irq 1,12
serio: i8042 KBD port at 0x60,0x64 irq 1
serio: i8042 AUX port at 0x60,0x64 irq 12
mice: PS/2 mouse device common for all mice
EISA: Probing bus 0 at eisa.0
Cannot allocate resource for EISA slot 1
Cannot allocate resource for EISA slot 4
EISA: Detected 0 cards.
TCP bic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
Using IPI Shortcut mode
Freeing unused kernel memory: 312k freed
input: AT Translated Set 2 keyboard as /class/input/input0
ACPI: Fan [FAN] (on)
ACPI Error (psargs-0355): [RBYT] Namespace lookup failure, AE_NOT_FOUND
ACPI Error (psparse-0537): Method parse/execution failed [\RTMP] (Node c1454d24), AE_NOT_FOUND
ACPI Error (psparse-0537): Method parse/execution failed [\_TZ_.THRM._TMP] (Node c1454c20), AE_NOT_FOUND
Uniform Multi-Platform E-IDE driver Revision: 7.00alpha2
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
via-rhine.c:v1.10-LK1.4.3 2007-03-06 Written by Donald Becker
ACPI: PCI Interrupt 0000:00:0a.0[A] -> GSI 19 (level, low) -> IRQ 16
eth0: VIA Rhine III at 0x1e400, 00:1c:c4:2a:54:c8, IRQ 16.
eth0: MII PHY found at address 1, status 0x786d advertising 05e1 Link 41e1.
SIS5513: IDE controller at PCI slot 0000:00:02.5
ACPI: PCI Interrupt 0000:00:02.5[A] -> GSI 16 (level, low) -> IRQ 17
SIS5513: chipset revision 0
SIS5513: not 100% native mode: will probe irqs later
SIS5513: SiS 962/963 MuTIOL IDE UDMA133 controller
ide0: BM-DMA at 0x4000-0x4007, BIOS settings: hda:DMA, hdb:pio
Probing IDE interface ide0...
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
ohci_hcd: 2006 August 04 USB 1.1 'Open' Host Controller (OHCI) Driver
hda: 512MB ATA Flash Disk, ATA DISK drive
hda: selected mode 0x22
ide0 at 0x1f0-0x1f7,0x3f6 on irq 14
SCSI subsystem initialized
ACPI: PCI Interrupt 0000:00:03.0[A] -> GSI 20 (level, low) -> IRQ 18
ohci_hcd 0000:00:03.0: OHCI Host Controller
ohci_hcd 0000:00:03.0: new USB bus registered, assigned bus number 1
ohci_hcd 0000:00:03.0: irq 18, io mem 0xec100000
libata version 2.21 loaded.
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 3 ports detected
ACPI: PCI Interrupt 0000:00:03.1[B] -> GSI 21 (level, low) -> IRQ 19
ohci_hcd 0000:00:03.1: OHCI Host Controller
ohci_hcd 0000:00:03.1: new USB bus registered, assigned bus number 2
ohci_hcd 0000:00:03.1: irq 19, io mem 0xec101000
usb usb2: configuration #1 chosen from 1 choice
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 3 ports detected
ACPI: PCI Interrupt 0000:00:03.2[D] -> GSI 23 (level, low) -> IRQ 20
ehci_hcd 0000:00:03.2: EHCI Host Controller
ehci_hcd 0000:00:03.2: new USB bus registered, assigned bus number 3
PCI: cache line size of 64 is not supported by device 0000:00:03.2
ehci_hcd 0000:00:03.2: irq 20, io mem 0xec102000
ehci_hcd 0000:00:03.2: USB 2.0 started, EHCI 1.00, driver 10 Dec 2004
usb usb3: configuration #1 chosen from 1 choice
hub 3-0:1.0: USB hub found
hub 3-0:1.0: 6 ports detected
hda: max request size: 128KiB
hda: 1000944 sectors (512 MB) w/1KiB Cache, CHS=993/16/63, DMA
hda: cache flushes not supported
hda: hda1 hda2
Attempting manual resume
kjournald starting. Commit interval 5 seconds
EXT3-fs: mounted filesystem with ordered data mode.
input: PC Speaker as /class/input/input1
Real Time Clock Driver v1.12ac
Linux agpgart interface v0.102
pci_hotplug: PCI Hot Plug PCI Core version: 0.5
shpchp: Standard Hot Plug PCI Controller Driver version: 0.4
sis96x_smbus 0000:00:02.1: SiS96x SMBus base address: 0x10c0
agpgart: Detected SiS chipset - id:1857
agpgart: AGP aperture is 64M @ 0xe8000000
ACPI: PCI Interrupt 0000:00:02.7[C] -> GSI 18 (level, low) -> IRQ 21
logips2pp: Detected unknown logitech mouse model 90
intel8x0_measure_ac97_clock: measured 154686 usecs
intel8x0: clocking to 48000
input: Power Button (FF) as /class/input/input2
ACPI: Power Button (FF) [PWRF]
input: Power Button (CM) as /class/input/input3
ACPI: Power Button (CM) [PWRB]
input: Sleep Button (CM) as /class/input/input4
ACPI: Sleep Button (CM) [FUTS]
input: ImExPS/2 Logitech Explorer Mouse as /class/input/input5
parport_pc 00:08: reported by Plug and Play ACPI
parport0: PC-style at 0x378 (0x778), irq 7, dma 3 [PCSPP,TRISTATE,COMPAT,ECP,DMA]
Adding 56216k swap on /dev/hda1. Priority:-1 extents:1 across:56216k
EXT3 FS on hda2, internal journal
loop: module loaded
device-mapper: ioctl: 4.11.0-ioctl (2006-10-12) initialised: dm-devel@redhat.com
eth0: link up, 100Mbps, full-duplex, lpa 0x41E1
